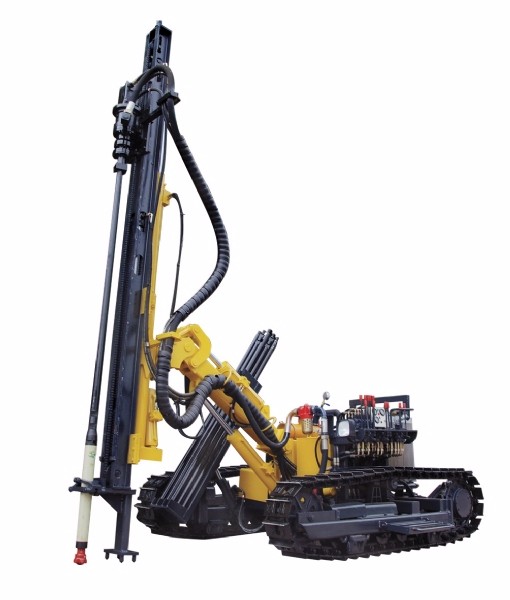

KG915 Open hole drill car
KG915 open-air DTH drilling rig is based on KG910B drilling rig. It innovatively designs the drilling arm, drill pipe frame and operating table. The main features are as follows.
Product characteristics:
KG915 open-air DTH drilling rig is based on KG910B drilling rig. It innovatively designs the drilling arm, drill pipe frame and operating table. The main features are as follows.
1. Innovative design of sliding frame and drilling arm components, so that a swing angle fulcrum can simultaneously drill horizontal and vertical holes, and horizontal holes are ultra-low;
2. the lifting drill pipe rack is easy to operate and saves labor.
3. the operation handle is centrally arranged and equipped with pedals, which is neat and beautiful, and the operation is convenient.
4. speed up rotary speed (maximum 120r/min) to meet market demand;
5. ultra low vehicle design, flexible guide bracket, convenient transportation.
KG915 Technical parameter | |
Rock drilling hardness | f=6-20 |
Drill diameter（mm） | φ80-105 |
Economic drilling depth（m） | 25 |
Walking speed（Km/h） | 0～2.5 |
Climbing ability（ °） | 30 |
Minimum ground clearance（mm） | 320 |
Power model | YC2108（33Kw/2200rpm） |
Whole machine size（mm） | 4600×2120×1800 |
Weight（Kg） | 3900 |
Working wind pressure（MPa） | 0.7-1.4 |
Sliding frame stroke（mm） | 3000 |
Maximum inclination of carriage（ °） | 185 |
Maximum swing angle of carriage（ °） | right 100o（45o） Left 5o（45o） |
Maximum horizontal swing angle of boom（ °） | right 45o Left 45o |
Compensatory stroke（mm） | 900 |
Rotary speed（rpm） | 0-120 |
Rotary torque（N.m） | 983 |
Lifting power（KN） | 17 |
Drill pipe diameter（mm） | φ60 |
Drill rod length（mm） | 2000 |
