        Home > DrillingEquipment&Matching > Underground electric scraper > WJD-2Underground electric scraper

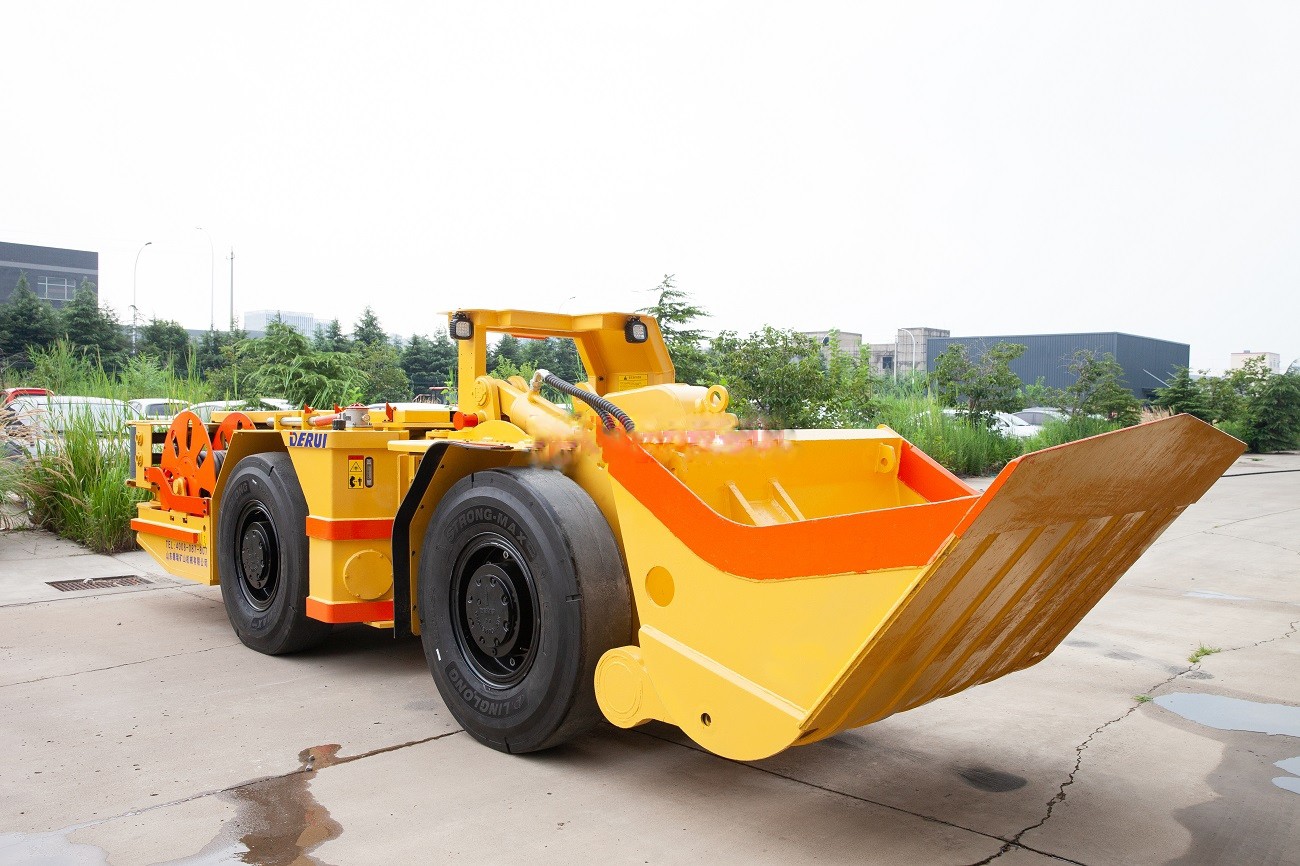

          WJD-2 Underground electric scraper

          As people pay more attention to environmental protection, the discharge requirements of underground scrapers are getting higher and higher. The application of the electric motor on the scraper realizes zero emission of exhaust gas and fundamentally solves the problem of exhaust gas emission. The automatic reeling system maintains the cable tension in an appropriate range and increases the service life of the cable. The extra-long cable design increases the working range of the electric scraper. The central hinged belt locking device makes the equipment more secure and reliable during maintenance.

          1. Detailed information

          Item

                   parameter

          bucket capacity

                     2m3

          rated  load

                      4t

               max shovel force

          102KN

               max traction force

                      104KN

          min unload distance

                      1024mm

          max unload height

          1785mm

          climb capacity(full load)

                       14°

          min turning radius

          Outside  4767mm

          inside   2461mm

          Max steering angle(left/right)

                      ±40°

          departure angle

                      15°

          walking speed(two way)

                      0-11.3Km/h

          motor model/power

          HM2-280S-4/75kw



          braking system



          Work and brake integrated, adopt spring brake. hydraulic realese brake

          Dimension(L*W*H)

           7330*1775*2050mm

          Weight

              14.2t
