        Home > DrillingEquipment&Matching > Underground electric scraper > WJD-0.6Underground electric scraper

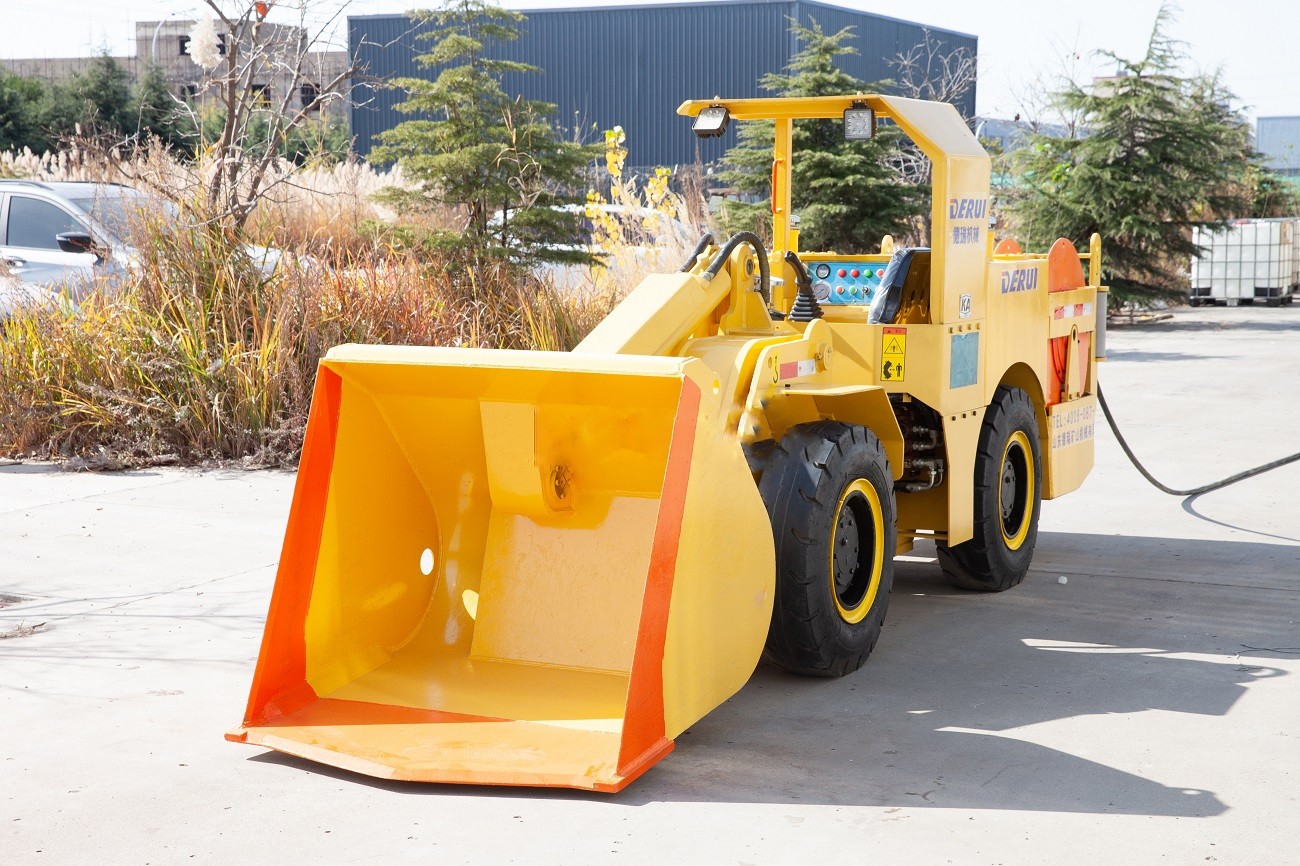

          WJD-0.6 Underground electric scraper

          As people pay more attention to environmental protection, the discharge requirements of underground scrapers are getting higher and higher. The application of the electric motor on the scraper realizes zero emission of exhaust gas and fundamentally solves the problem of exhaust gas emission. The automatic reeling system maintains the cable tension in an appropriate range and increases the service life of the cable. The extra-long cable design increases the working range of the scraper. The central hinged belt locking device makes the equipment more secure and reliable during maintenance.

          1. Detailed information

          Item

                   parameter

          bucket capacity

                     0.6m3

          rated  load

                      1.2t

               max shovel force

          40KN

               max traction force

                      38KN

          min unload distance

                      785mm

          max unload height

          1020mm

          climb capacity(full load)

                       16°

          min turning radius

          Outside  3445mm

          inside   1900mm

          Max steering angle(left/right)

                      38°

          departure angle

                      16°

          walking speed(two way)

                      0-7Km/h

          motor model/power

          HM2-2-225S-4/37kw



          braking system



          Work and brake integrated, adopt spring brake. hydraulic realese brake

          Dimension(L*W*H)

           4750*1100*1840mm

          Weight

              5.1t
