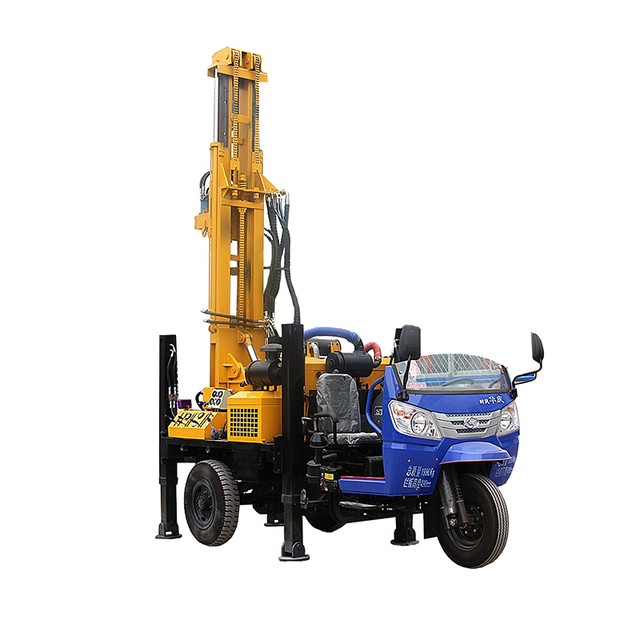

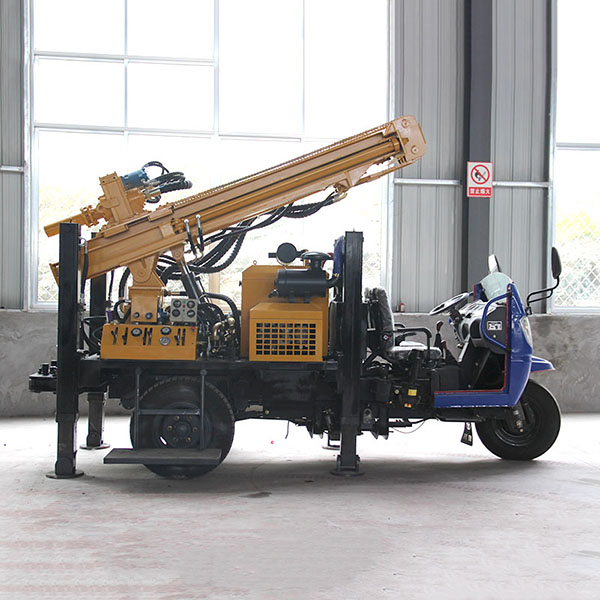

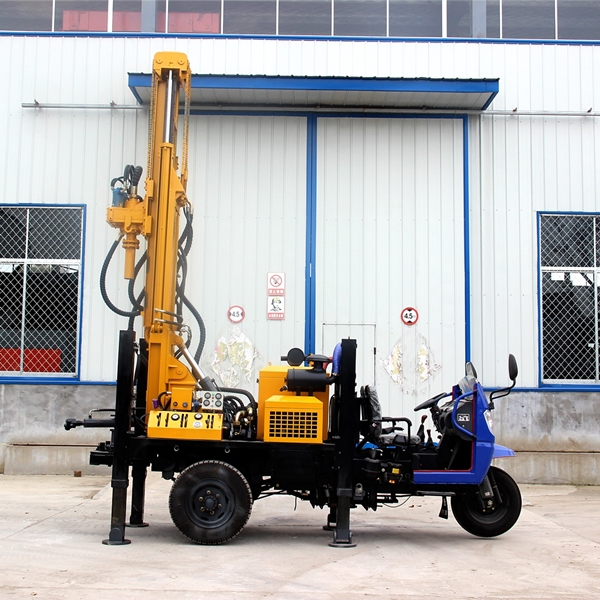

FYL200 Water Well Drilling Rig
FYL200 water well drilling rig Features: Water and gas dual-purpose vehicle-mounted (tricycle) 200 meters deep water drilling Features: 1. Equipped with a 65KW Yuchai brand turbocharged engine with strong power; 2. Patented design compound boom, double cylinder lifting; 3. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder; 4. It has high flexibility, is sturdy and durable, has little damage to the road surface, and is easy to move; 5. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenanc
FYL200 water well drilling rig Features: Water and gas dual-purpose vehicle-mounted (tricycle) 200 meters deep water drilling Features:
1. Equipped with a 65KW Yuchai brand turbocharged engine with strong power;
2. Patented design compound boom, double cylinder lifting;
3. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;
4. It has high flexibility, is sturdy and durable, has little damage to the road surface, and is easy to move;
5. Parallel transmission design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.
6. The whole machine uses a three-wheeled tractor with high horsepower and low torque, which can cope with more complex road conditions and is easy to move.
7. Dual systems can be added: 1. Air power system with air compressor 2. Mud pump system with mud pump
FYL 200vehicle-mounted water well drilling rig | |||
The weight（T） | 4.7 | Drill pipe diameter（mm） | Φ76 Φ89 |
The hole diameter（mm） | 140-254 | Drill pipe length（m） | 1.5m 2.0m 3.0m |
Drilling depth（m） | 200 | Rig lifting force（T） | 13 |
One-time advance length（m） | 3.3 | Rapid rise speed（m/min） | 20 |
Walking speed（km/h） | 20-40 | Fast feeding speed（m/min） | 40 |
Climbing angles（Max.） | 30 | Swing speed（rpm） | 45-65 |
Equipped capacitor（kw） | 65 | Hoisting force of winch（T） | ---- |
Using air pressure（MPA） | 1.7-2.5 | Swing torque（N.m） | 3400-4700 |
Air consumption（m3/min） | 17-31 | Dimension（mm） | 4350×1600×2450 |
The penetration efficiency（m/h） | 10-35 | High leg stroke（m） | 1.4 |
The engine brand | Quanchai engine | ||
